MSS ENERGO32mini
For more information about our offer of data connections for both types of MSS ENERGO energy pillars, click on the above file.
We use media converters of METEL s.r.o. for the distribution boards of the feeder pillars.
Click on the logo to get to the web page:
TILTING Feeder pillars:
- TN-S (TN-C and TT can also be connected)
- IP67 degree of protection
- stainless steel cover 12.5 t (for different fillings up to 40 mm)
- 32 A rated
- main switch
- connection set for CYKY (4) 5 x 6-16 mm2 power cable
32 A socket underrated to 25 A, cover selectivity to 32 A circuit breaker on supply line!
SLIDING Feeder pillars:
- TN-S (TN-C and TT can also be connected)
- IP67 degree of protection
- stainless steel cover 12.5 t (for different fillings up to 40 mm)
- 32 A rated
- one main switchboard with the main switch
- connection set for CYKY (4) 5 x 6-16 mm2 power cable
- protective earthing rod FeZn 10 mm
SLIDING Feeder pillars:
- TN-S (TN-C and TT can also be connected)
- IP67 degree of protection
- stainless steel cover 12.5 t (for different fillings up to 40 mm)
- 63 A rated
- one main switchboard with the main switch
- connection set for CYKY (4) 5 x 6-16 mm2 power cable
- protective earthing rod FeZn 10 mm r
SLIDING Feeder pillars:
- TN-S (TN-C and TT can also be connected)
- IP67 degree of protection
- stainless steel cover 12.5 t (for different fillings up to 40 mm)
- 80 A rated
- one main switchboard with the main switch
- connection set for CYKY (4) 5 x 6-16 mm2 power cable
SLIDING Feeder pillars:
- TN-S (TN-C and TT can also be connected)
- IP67 degree of protection
- stainless steel cover 12.5 t (for different fillings up to 40 mm)
- 126 A current (2 x 63 A) rated
- two main switchboards with the main circuit breaker
- connection set for CYKY (4) 5 x 25 mm2 power cable
SLIDING Feeder pillars:
- TN-S (TN-C and TT can also be connected)
- IP67 degree of protection
- stainless steel cover 12.5 t (for different fillings up to 40 mm)
- rated to 160 A current (2 x 80 A)
- two main switchboards with the main circuit breaker
- connection set for CYKY (4) 5 x 35 mm2 power cable
MSS = multi-purpose pillar SITEL
MSS ENERGO is used to connect electricity in open areas, such as squares, parks or various sports areas, where cultural and social events usually take place. Equipment and configurations follow the wishes of the customer after consultation with the producer. SITEL offers two basic types of the feeder pillars as standard. Sliding and tilting ones. There are the sliding ones in five types of pillars rated at maximum current with various options of customer equipment with socket combinations on ready-made socket boards. There can be 2 up to 4 socket combinations fitted in one feeder pillar. The "MINI" tilting pillar is rated at a maximum current of 32 A, with the possibility of fitting one distribution board and choice of four socket types.
MSS OPTO is designed for FTTH, FTTB, FTTC optical networks. MSS OPTO is available in distribution (S1EDP) and access (S1FDD) version. You can solve the whole network topology with this product. Up to 144 optical fibers can be used on the pillar and a 1/16 splitter can also be placed in the access version. The maximum number of connectable buildings to the optical pillar in the access version is 16.

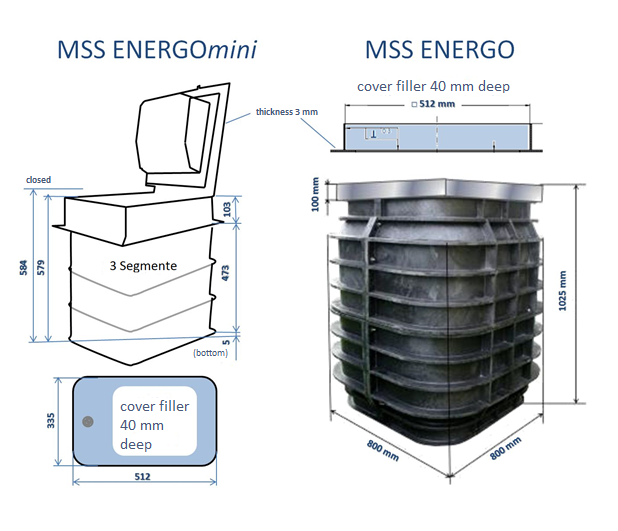

SLIDING: MSS ENERGO32, MSS ENERGO63, MSS ENERGO80, MSS ENERGO126 a MSS ENERGO160
TILTING: MSS ENERGO32mini, MSS OPTO S1EDP, MSS OPTO S1FDD
TYPE DISTRIBUTION BOARDS (combinations according to selected sizing)
(Customer configuration can also be created):
