The construction of cable lines from the Multiducts and Carson access chambers has been launched in our market more than 15 years ago, during this time our company successfully introduced these products to the market and gained a lot of experience that was used to improve this progressive solution for construction of cable raceways.  Multiduct is used to build metropolitan networks, railway and tram stops, local networks, spinal lines of buildings. The key is that it is easy to enter from the access chambers and no other earthwork is necessary. The experience shows the advantage of planning cable lines with a spare capacity especially in urban areas, as with the increase in the volume of laid cables, space storage is also increasing. All of these demands the Multiducts meet to the full, and it is undeniable that there is currently no comparable product capable of fully competing with this system and all its benefits.

DETAIL INFORMATION

6 and 4 Way Multiducts are produced and supplied with a new "PUSH-FIT" lock, which allows the parts to be "snapped" without the need for connecting clips.

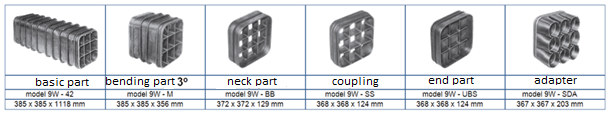

9 WAY MULTIDUCTS

6 WAY MULTIDUCTS

4 WAY MULTIDUCT

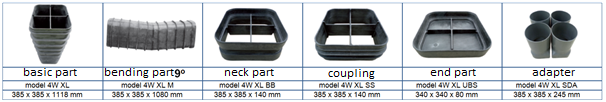

4 WAY MULTIDUCT XL

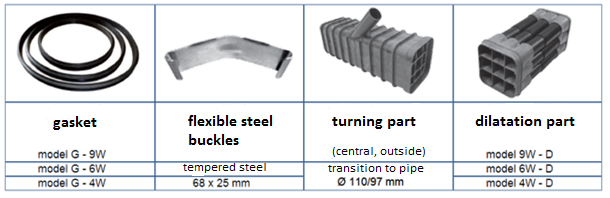

ACCESORIES

For lines requiring reduced flammability of the cable duct is used a Multiduct 9W NH / CZ according to ISO 11925-2, ČSN EN 13501-1: 2007
When using Multiducts for outdoor applications, unstabilized material can degrade in a very short time as a result of UV radiation. Therefore, it is necessary that Multiducts for outdoor use are UV- stabilized, so a UV stabilizer is added to the mixture for production of Multiducts to protect the material from degradation and deterioration of the physical and mechanical properties of the product. The Multiduct with increased UV resistance is marked “Multiduct UV”. It is suitable for external applications, such as the installation of a cable raceway underneath bridge structures. For this type of installation we have a unique dilatation coupler.
When demanding a waterproof raceway we offer a solution using a special waterproof Multiduct system and waterproof concrete shafts that can resist the water pressure up to 0.3 bar. Installing this technology requires application of special technology and strict compliance with the installation instruction. The Waterproof warranty will only be issued when the cable duct is installed by SITEL or by a professionally trained company. Available only for 9 Way version (production in the Czech Republic).

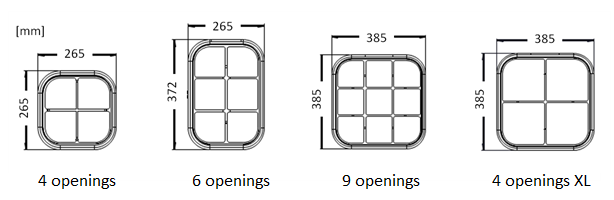

It is produced and supplied in six or four-opening versions. The size of MICRO multichannel openings is half the standard multichannel. This performance also has PUSH-FIT lock to ensure quick assembly.
Názorná ukázka odolnosti unikátní konstrukce Multikanálů.
